RAM Handlebar U-Bolt Mount for 0.5″ to 1.25″ Diameter Rails

Description

Ideal for motorcycle handlebars, the RAM-B-231ZU consists of a 1″ B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from 0.5″ to 1.25″ in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum width of 0.5″.

Features:

• Zinc-coated metal U-bolt base with 1″ rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
• Compatible with any B size RAM® Mounts component; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Specifications:

• CLAMP RANGE: 0.5″ (12.7mm) – 1.25″ (31.7mm)diameter
• BALL SIZE: B Size (1″, 25.4mm)

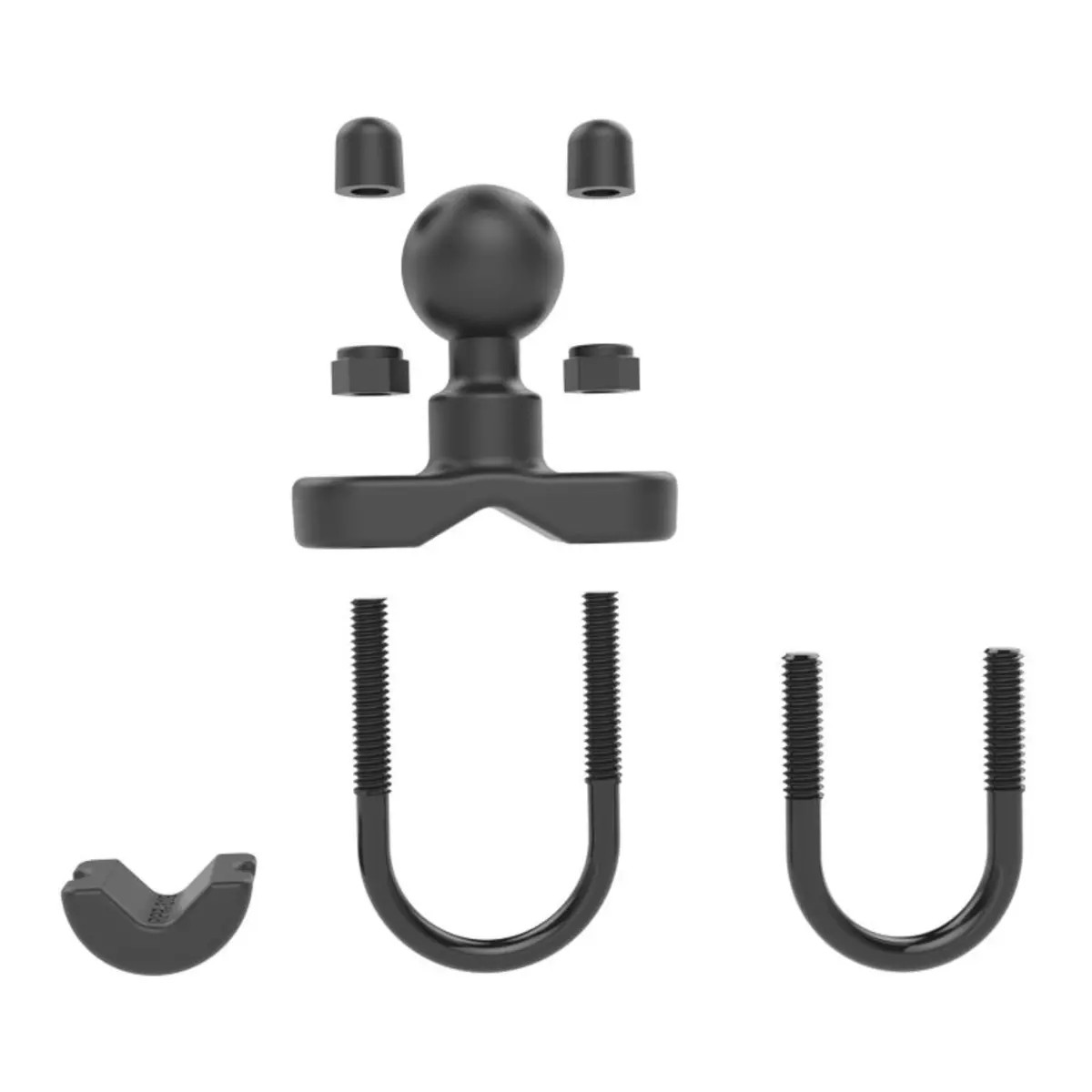

Hardware Included:

• x1 1/4″-20 U-Bolt for 0.5″ – 1″ Rails
• x1 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
• x2 1/4″-20 Nylock Nuts
• x2 Rubber Caps
• x1 U-Bolt Spacer
