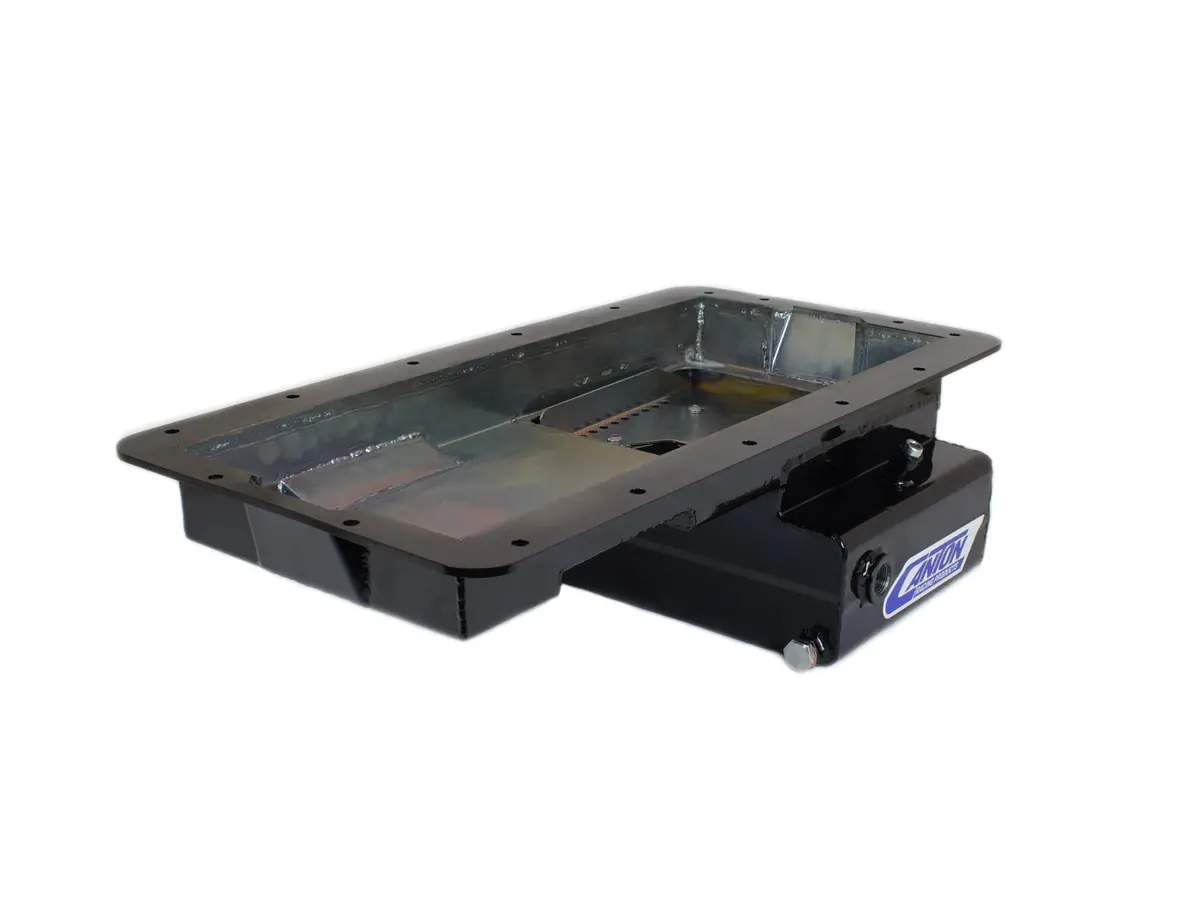

Canton Front-Sump Road Race Oil Pan For Ford 5.0L Coyote Engines (Model 15-738Blk)

Description

Cantons new black powder coat 15-738 Ford 5.0 Coyote oil pan is designed for early Ford chassis and others that required a front sump oil pan. The pan is designed with a ?t?sump for extra capacity and is used in road race applications where ground clearance is important .It features a diamond shaped road race baffle assembly with four trap doors and a removable Windage/anti-slosh baffle.

• Designed for 5.0 Coyote Blocks
• Diamond Shape Road Race Baffle Assembly With Four Trap Doors
• Removable Windage/Anti-Slosh Baffle
• 1/2″ NPT Temperature Bung
• 20mm Bung for low Oil Warning Sender
• Made In USA
• Tig Welded

Attributes:

• Brand Name: Canton
• GTIN: 00887753713421
• Baffled: Yes
• Capacity: 7 Quart System Capacity
• Crank Scraper Included: No
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Feature 1: Designed for 5.0 Coyote Blocks
• Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
• Feature 3: Removable Windage/Anti-Slosh Baffle
• Feature 4: 1/2″ NPT Temperature Bung
• Feature 5: 20mm Bung for low Oil Warning Sender
• Feature 6: Made In USA
• Feature 7: Tig Welded
• Feature 8: Black Powdercoat
• Finish: Black Powdercoat
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 15-739 – Pickup for 5.0 Coyote Front Sump Pan
• Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
• Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T Fitting
• Windage Tray Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.5 x 13.5 x 10 inches
• Weight: 15.05 POUNDS
